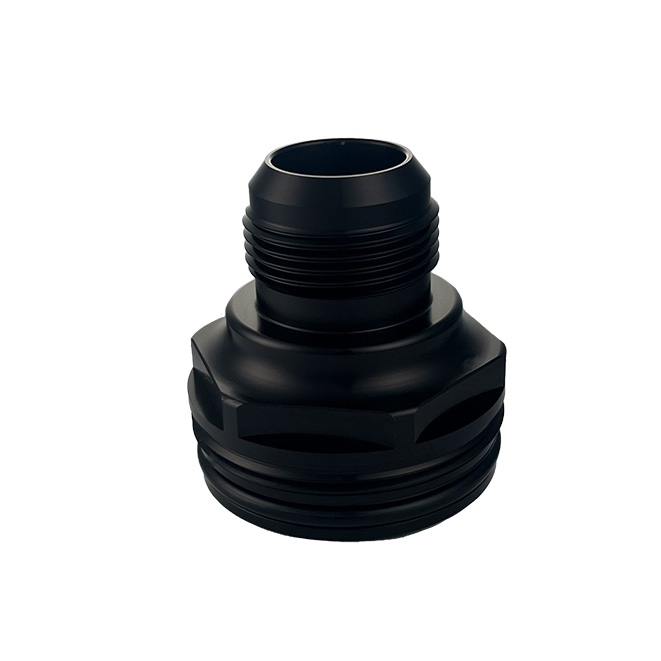

Many of our pumps designed for the LS engine use a special fitting on top. The pumps usually come with a 1.25" hose connection. However, if you require a fitting to help you connect to AN style hose, we have the solution. This fitting uses our standard pump interface but provides a male #16AN feature for easy plumbing. It is similar to our WPLS11716 fitting but is a short design with minimal distance from the port to the -16 male feature. This fitting is available in black anodized finish only.
- Aluminum machined product.
- Double o-ring seal design.
- Clearanced for the thermostat where appropriate.
- Black anodized finish.
- Compatible with pump model WP319.
- Compatible with pump model WP333.
- Compatible with pump model WP334.
- Overall Length 2.25". End of fitting 1.67" from the port face.
