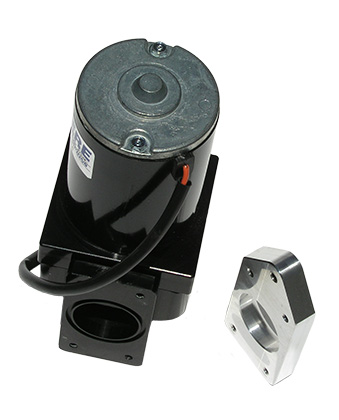

This water pump model features:
- Radiator or tank mount, single exit design.
- Suitable for street or drag strip use.
- 2400+ hour life expectancy.
- Show quality finish.
- All stainless steel hardware and weld-on mounting plate included.
- Light weight. Complete standard unit weighs only 5.4 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal.
- Single outlet port threaded #12AN to accept our standard #12 O-ring style fittings.
- Finishing The System: This pump is supplied complete with the mount plate but without the outlet fitting. The fitting needs to be ordered according to the size of the radiator hoses.
- Amperage draw: Under normal use the pump will draw 5-6 amps.
- Overall Height Dimension: The standard pump is 4.0" long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 5.4 lbs.
- 16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.
