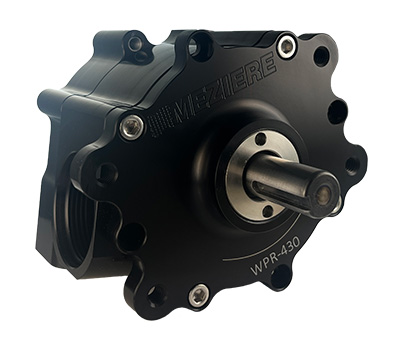

The 400 Series belt driven pumps are show quality outside and race bred inside. Our mechanical remote pump has been used on several unique projects as a way to allow custom accessory arrangements that would stand in the way of a typical block mounted water pump. This pump is typically mounted off to the side of the engine much like an alternator or air pump and is belt driven. The appearance of this all billet belt driven pump is a definite show stopper, but the true beauty can be seen in the performance chart and on your temperature gauge. Top end figures match the best racing pumps on the market and off idle flow is 5 to 7 GPM higher than any competitor. This pump will save a racer over 10HP compared to a stock pump and eliminate most low speed cooling problems for the street rodder.
This water pump model features:
- Remote mount - it will require fabrication skills
- Suitable for all street or racing applications.
- Large Chevrolet bearing and seal pack provide excellent reliability.
- Inlet port accepts our WN style fittings.
- Fittings available include #16AN, #20AN, #24AN, 1.25", 1.50' or 1.75" slip hose.
- Dual outlet ports accept #12AN o-ring boss type fittings.
- Show quality finish.
- All stainless steel hardware included.
- All billet body and impeller provide tight clearances for excellent flow characteristics.
- Reverse rotation suitable to be driven by the back side of a serpentine belt. One can also reverse mount the pump and drive with a v-belt.
- Does not have ports for heater and bypass connections.
