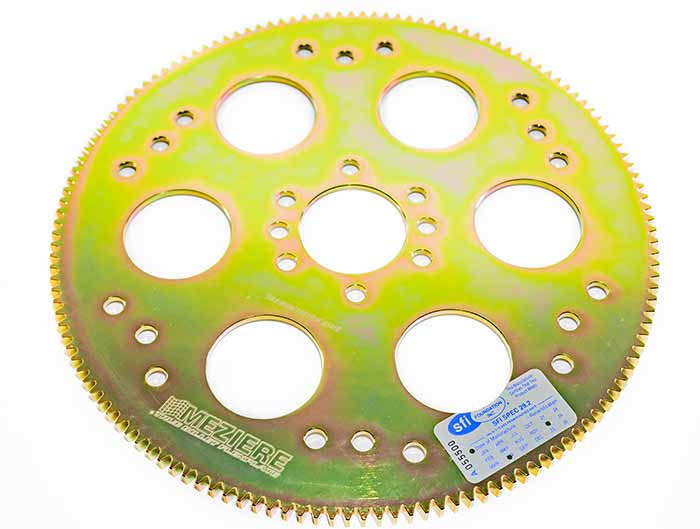

Features of this part number include:
- Concentric machined to .005".
- One piece design - 100% machined.
- Proprietary heat treating process.
- Chamfered gear tooth provides better engagement.
Application information:
- Fits big and small block Chevrolet.
- 139 tooth ring gear.
- 10 pitch tooth profile.
- Weighs 6.3 pounds (Neutral).
- Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
- Converter pattern 2 - 6 holes 7/16" diameter on 11.50" bolt circle.
- Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle.
- Converter pattern 4 - 3 holes 7/16" diameter on 11.50" bolt circle.
- *Note - Patterns 3 and 4 provide the "split" pattern 3 in and 3 out.
