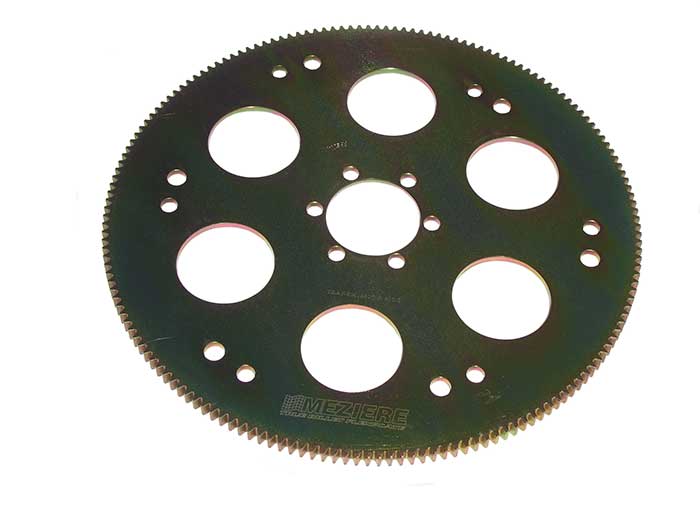

This plate was developed with common drag race transmissions in mind. On the initial install you will need part FPS174A to complete the package as well as bolt kit FPHM111.5MMx1.125-6 (Long LS crank bolts). The beauty of this plate and accompanying parts, is that it bolts directly on to the standard 6 bolt LS crank, provides the factory location for the ring gear, ensuring standard starter fitment and provides the correct location and bore for a standard TH400 or Powerglide torque converter. If you are coupling an LS engine to a Powerglide or TH400 transmission this plate will be a real problem solver.
Features of this part number include:
- Concentric machined to .005".
- One piece design - 100% machined.
- Proprietary heat treating process.
- Chamfered gear tooth provides better engagement.
Application information:
- Fits GM LS engines with 6 bolt crank.
- 168 tooth ring gear.
- 12 pitch tooth profile.
- Weighs 6.95 pounds.
- Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
- Converter pattern 2 - 6 holes 7/16" diameter on 11.50" bolt circle.
- Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle.
- Converter pattern 4 - 3 holes 7/16" diameter on 11.50" bolt circle.
- *Note - Patterns 3 and 4 provide the "split" pattern 3 in and 3 out.
