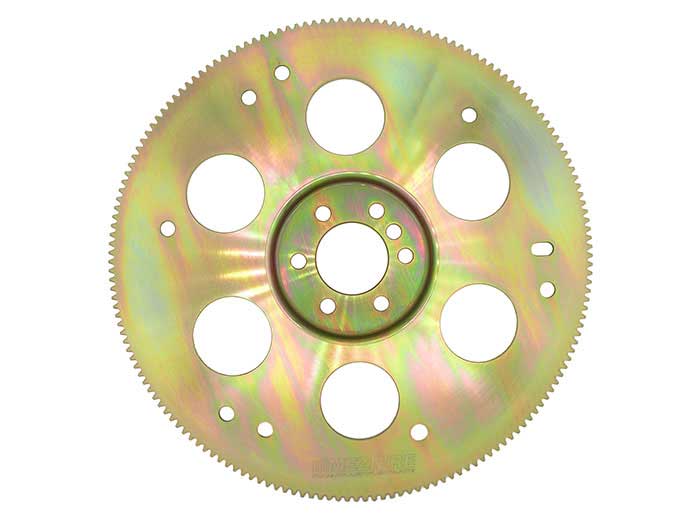

Features of this part number include:
- Concentric machined to .005".
- One piece design - 100% machined.
- Proprietary heat treating process.
- Chamfered gear tooth provides better engagement.
Application information:
- Fits GM LS engines with 6 bolt crank.
- 168 tooth ring gear.
- 12 pitch tooth profile.
- Weighs 6.95 pounds.
- Converter pattern 1 - 3 holes 7/16" diameter on 10.75" bolt circle.
- Converter pattern 2 - 3 holes 7/16" diameter on 11.50" bolt circle.
- Converter pattern 3 - Stock 3 hole with 1 slotted on 281 mm circle.
