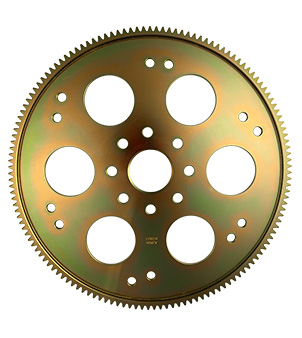

Features of this part number include:
- Concentric machined to .005".
- One piece design - 100% machined.
- Proprietary heat treating process.
- Chamfered gear tooth provides better engagement.
Application information:
- Fits big block Mopar with 8 bolt crank.
- Note* This plate centers on a 2.16 diameter boss in the middle.
- NOT on the outside of the crank flnge as a HEMI does.
- 139 tooth ring gear.
- 10 pitch tooth profile.
- Neutral balance.
- Weighs 6.8 pounds.
- Converter pattern 1 - 3 holes 7/16" diameter on 10.75" bolt circle.
- Converter pattern 2 - 3 holes 7/16" diameter on 11.50" bolt circle.
- Converter pattern 3 - 6 holes 7/16" diameter on 10.75" bolt circle.
- NOTE: Patterns 1 and 2 provide the 6 bolt "split" pattern. 3 in and 3 out.
