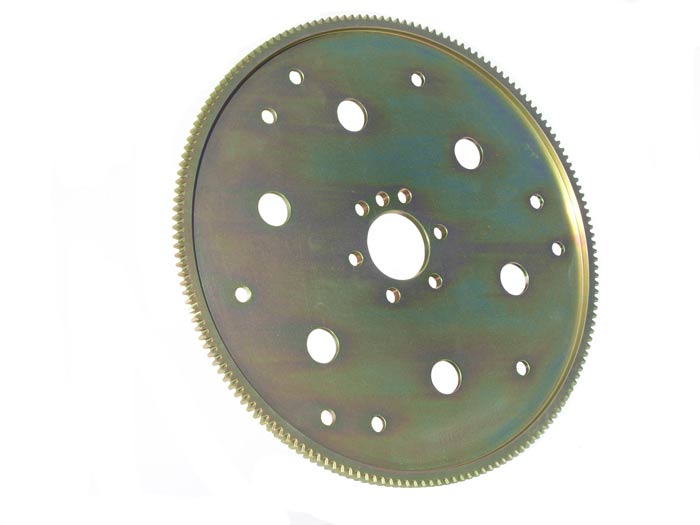

Built for the demands of the automotive aftermarket, this plate is usually used when a GM LS powerplant is coupled with an aftermarket transmission. It is not appropriate for TH400 or Powerglide transmission applications. It has been used with Albins and other aftermarket gear boxes.
Features of this part number include:
- Concentric machined to .005".
- One piece design - 100% machined.
- Proprietary heat treating process.
- Chamfered gear tooth provides better engagement.
Application information:
- Fits GM LS engines with 6 bolt crank.
- Non-standard converter spacing!!
- 168 tooth ring gear.
- 12 pitch tooth profile.
- Weighs 8.85 pounds.
- Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
- Converter pattern 2 - 3 holes 7/16" diameter on 11.50" bolt circle.
